Saboo Vertical Grinding Mill is principally made from sturdy cast iron body, mounted on heavy cast iron frame, having dust proof housing on both sides equipped with SKF Ball bearing and provided with EN - 8 hardened and grounded shaft ensuring smooth running. The mill is having a steel hopper with the perfect feed control device by which you can adjust the feed rate.

The mill is fitted with high wear resistant best quality SABOO Emery Stones. The stationary stones is bolted on the casting and the runner stone is fitted on the shaft.

The grains are subjected to the grinding surface of the stones and the desired fineness can be achieved with the help of an easy adjustable hand wheel. The Flour can be collected from the two outlets provided with the mill.



 horizontalmillt

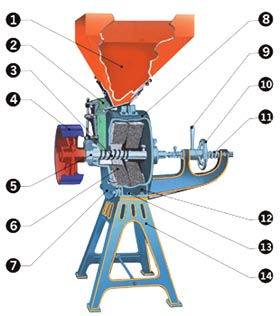

Sectional Detail

Section of the vertical mill

S.No

 Particulars

1. Steel Hopper.
2. Vibrating Feed Chute.
3. Feed Spring.
4. Driven Pulley.
5. Bright Steel Shaft.
6. Saboo Millstones.
7. Fixed Stone Casing.
8. Runner Stone Casing.
9. Pulley Disengaging Device
10. Fine adjusting wheel.
11. Saftey Spring.
12. Two Outlets.
13. Sack Holder.
14. Heavy Cast Iron Frame.


Technical Specifications

FLOUR MILL SIZE  (mm) 300 400 500 600
Output (Kgs./ Hr) 250 430 625 1000
Hopper Capacity ( Kgs) 30 50 65 85
Pulley Size (Dia. x W) 250 x 90 300 x 100 400 x 100 500 x 100
R.P.M 750 650 550 500
Drive (HP) 5 10 15 25
Net Weight (Kgs.) 130 225 255 410
Gross Weight (Kgs.) 165 295 300 515
Shipping Volume (Cb.M) 0.35 0.40 0.65 0.85

Note: Due to regular developments specification may have little variations.
